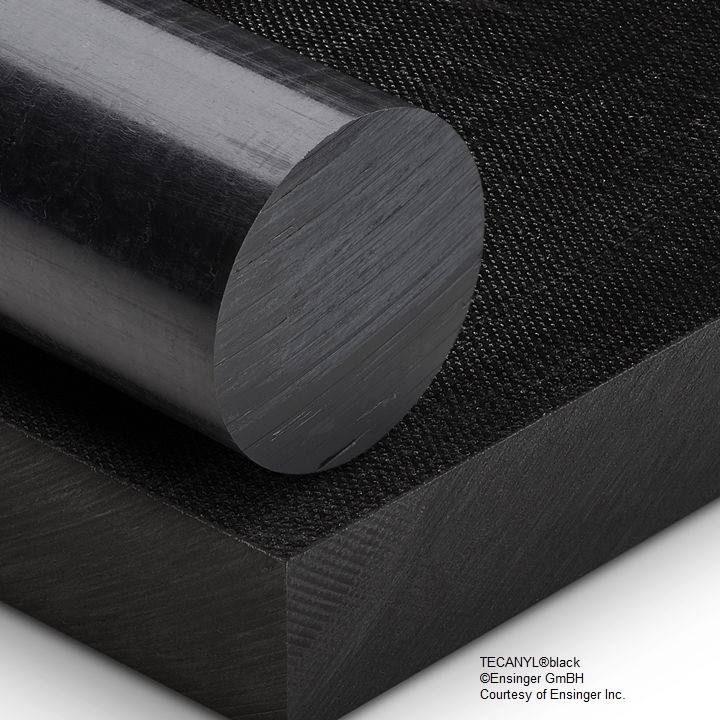

TECANYL® black (Noryl EN 265)
TECANYL PPE black, (made with Noryl® EN265) due to its inherent chemical composition, exhibits unusually low moisture absorption. Therefore, good electrical insulating properties are realized over a wide range of humidity and temperature conditions. Chemical attack from water, most salt solutions, acids and bases is also minimal with TECANYL. The addition of glass fiber reinforcement enhances both the mechanical and thermal properties of the basic TECANYL material. Made from Sabic Noryl® EN265 resin.
Facts
Chemical Designation
PPE (Polyphenylene ether)
Color
black
Density
1.08 g/cm3
PPE (Polyphenylene ether)
Color
black
Density
1.08 g/cm3
Features
- very high stiffness
- high strength
- good dimensional stability
- high toughness
- high thermal resistance
Industries
conveyor technology
mechanical engineering
food processing
precision engineering
automotive industry
electrical engineering
home appliances
mechanical engineering
food processing
precision engineering
automotive industry
electrical engineering
home appliances
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 350,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 9,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 9,200 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 25 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 13,400 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 370,000 | psi | @ 73 °F | ASTM D 790 |
| Impact strength (Izod) | 3.5 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 119 | @ 73 °F R Scale |
ASTM D 785 | |
| Coefficient of friction | 0.32 | Static | ASTM D 3702 | |
| Coefficient of friction | 0.39 | Dynamic, 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Vicat softening point | 310 | °F | ||
| Deflection temperature | 279 | °F | @ 66 psi | ASTM D 648 |
| Deflection temperature | 254 | °F | @ 264 psi | ASTM D 648 |
| Service temperature | 230 | °F | Intermittent | |
| Service temperature | 220 | °F | Long Term | |
| Thermal expansion (CLTE) | 3.3*10-5 | in/in/°F | ASTM D 696 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Volume resistance | 1*1017 | Ω*cm | @ 73 °F | ASTM D 257 |
| Dielectric strength | 500 | V/mil | ASTM D 149 | |
| Dissipation factor | 0.0007 | @ 60 Hz, 73 °F | ASTM D 150 | |
| Dielectric constant | 2.7 | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.07 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V1 | |||
| Flammability (UL94) | V0 |
