Polycarbonate (TECANAT)
SKU: Polycarbonate (TECANAT natural)
X
Product Description
***SHEETS ARE MACHINE GRADE***

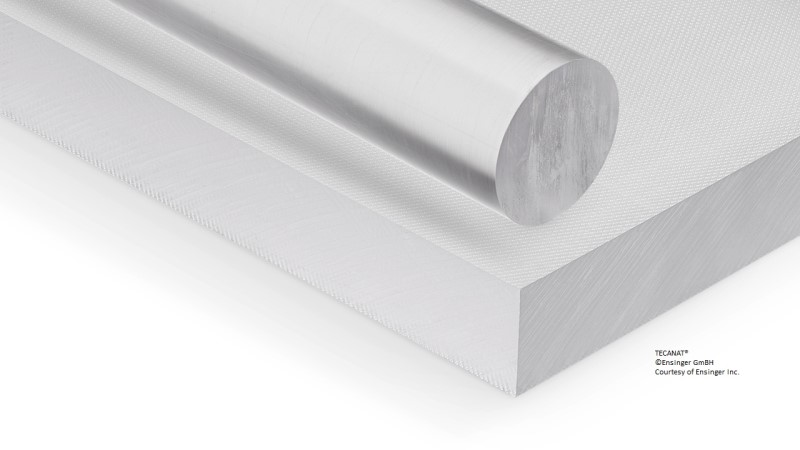

Due to its low level of crystallinity, Ensinger's polycarbonate, marketed as TECANAT natural, has a high level of transparency. The unmodified PC is characterized by high strength, rigidity and hardness, as well as good impact strength. However, as is the case with all amorphous thermoplastics, lower chemical resistance may be a limiting factor in the material selection process.
FACTS
Chemical Designation:
PC (Polycarbonate)
PC (Polycarbonate)
Color:
transparent (Alt: black)
transparent (Alt: black)
Density:
1.19 g/cm3
1.19 g/cm3
FEATURES
- Excellent Impact Strength
- Excellent Strength And Stiffness
- Excellent Dimensional Stability
- Good Machinability
INDUSTRIES
- Aircraft And Aerospace Technology
- Food Engineering
- Food Processing
- Cleanroom Technology
- Packaging And Paper Machinery
DOWNLOADS
Mechanical Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Tensile strength at yield | 9,300 | psi | @ 73 °F | ASTM D 638 |
| Modulus of elasticity (tensile test) | 340,000 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 90 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 12,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 328,000 | psi | @ 73 °F | ASTM D 790 |
| Impact strength (Izod) | 2.5 | ftlbsin | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 70 (118) | @ 73 °F | ASTM D 785 | |
| Wear (K) factor | 2500*10-10 | in3minftlbshr | Against Steel, 40 psi, 50 fpm | ASTM D 3702 |
| Coefficient of friction | 0.38 | Dynamic, 40 psi, 50 fpm | ASTM D 3702 | |
| Compression strength | 2,100 | psi | @1% strain, 73 °F | ASTM D 695 |
| Compression strength | 10,000 | psi | @10% strain, 73 °F | ASTM D 695 |
| Compression modulus | 245,000 | psi | @ 73 °F | ASTM D 695 |
| Shear strength | 9,900 | psi | ||
| Shore hardness | 79 | D scale | ASTM D 785 | |
| Impact strength (Izod) | 65 | ftlbsin | unnotched | ASTM D 256 |
Thermal Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Deflection temperature | 280 | F | @ 66 psi | ASTM D 648 |
| Deflection temperature | 295 | F | @264 psi | ASTM D 648 |
| Thermal expansion (CLTE) | 3.8 | *10^-5 in/in /degree | ASTM D 696 | |
| Service temperature | 275 | F | Intermittent | |
| Service temperature | 250 | F | Long Term | |
| Specific heat | 0.30 | btu/lb-deg | ||
| Thermal conductivity | 1.39 | BTU-in/hr-ft^2 - deg | ASTM C 177 | |
| Vicat softening point | 309 | F | ASTM D 1525 |
Electrical Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Volume resistance | 1.0*1015 | Ω*cm | @ 500V | ASTM D 257 |
| Dielectric strength | 365 | V/mil | ASTM D 149 | |
| Dielectric constant | 2.87 | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 | |
| Dielectric constant | 2.96 | @ 1MHz | ASTM D 150 | |
| Dissipation factor | 0.0009 | @ 60 Hz, 73 °F | ASTM D 150 |
Other Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Moisture absorption | 0.07 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 0.35 | % | @ saturation, 73 °F | ASTM D 570 |
| Flammability (UL94) | HB | |||
| Flammability | Self extinguishing |
